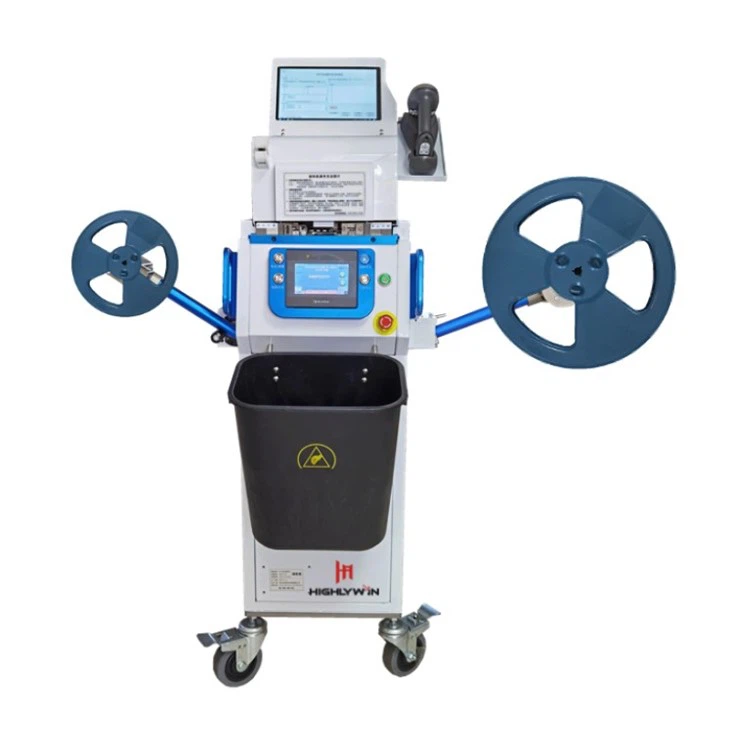

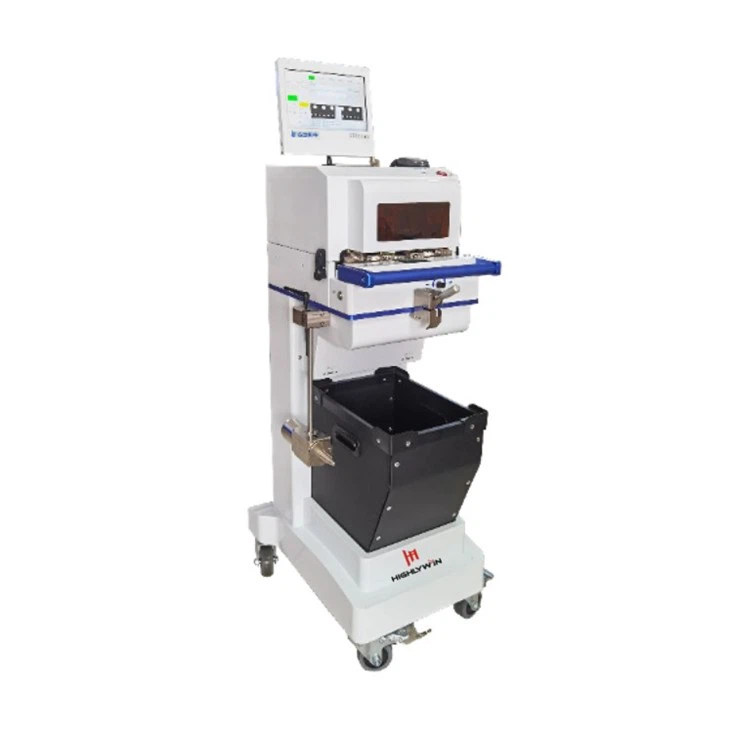

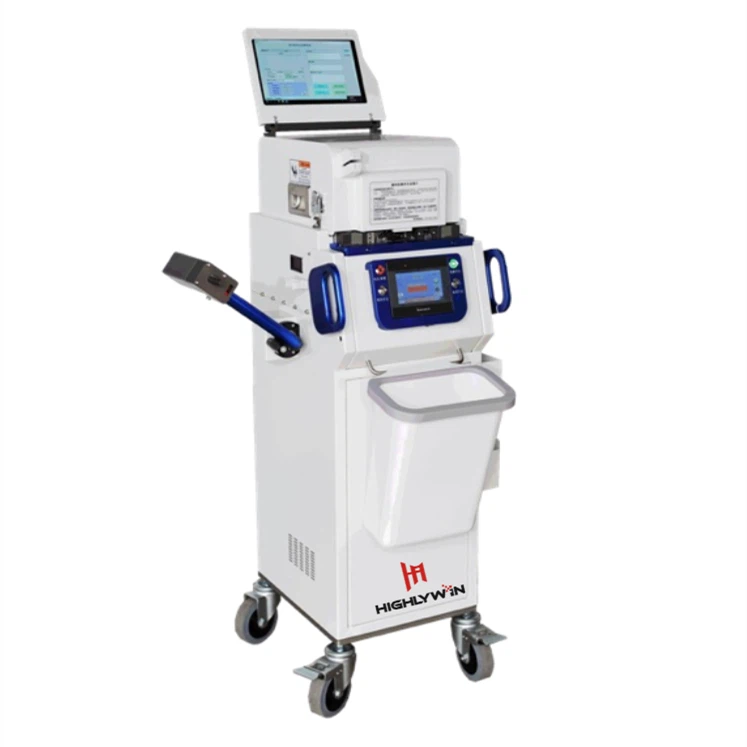

SMT Auto Splicing Machine

This auto splicing machine performs splicing work automatically with stable quality, significantly efficiency, and fewer stops. And can connect to the MES system.

SMT Solder Paste Mixer

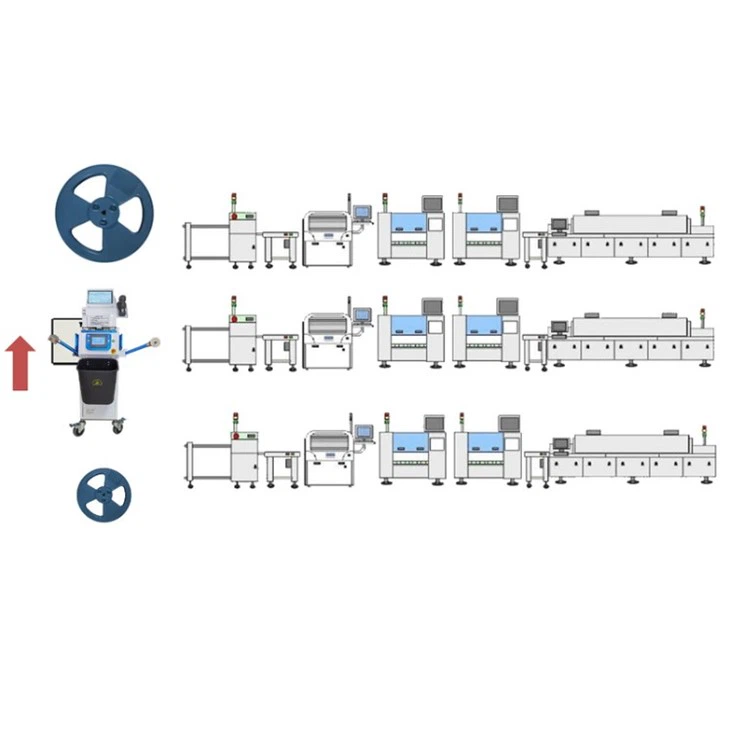

Achieve rapid material changing without the machine stopping.

Our splicer now completes 8-24mm series products full coverage. For more information or to discuss your splicer requirement please get in touch with us.

Support various material tapes (paper, black, transparent, etc.)
With an automatic adjustment track to fit the tape width.
With automatic detection of the location of empty material, accurate cutting, and splicing successful rate of up to 98% or more.
Easy operation.
Option: equip with RC value function.
Support empty material detection, support minimum component of 01005.
Support wireless scanning bar code checking and error proofing.
Support connecting with the MES system.
Off-line machine with four wheels and 100ah lithium battery, free to move.
Simple operation interface.
The splicing machine with the measured version can automatically detect the value of resistance, capacitance, and inductance for error-proofing.
For IC and other components that cannot be measured, we have the model of “HES-540” which owns the function of automatic both sides screen printing comparison for error proofing.

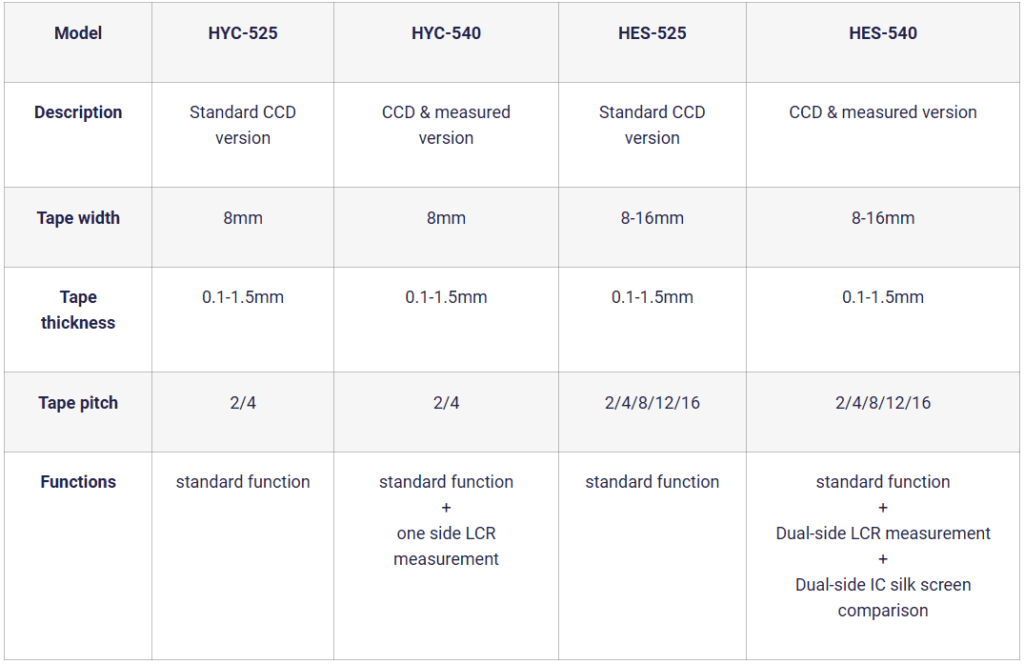

Modell	HYC-525	HYC-540	HES-525	HES-540
Beschreibung	Standard CCD version	CCD & measured version	Standard CCD version	CCD & measured version
Tape width	8mm	8mm	8-16mm	8-16mm
Tape thickness	0.1-1.5mm	0.1-1.5mm	0.1-1.5mm	0.1-1.5mm
Tape pitch	2/4	2/4	2/4/8/12/16	2/4/8/12/16
Functions	standard function	standard function + one side LCR measurement	standard function	standard function + Dual-side LCR measurement + Dual-side IC silk screen comparison
