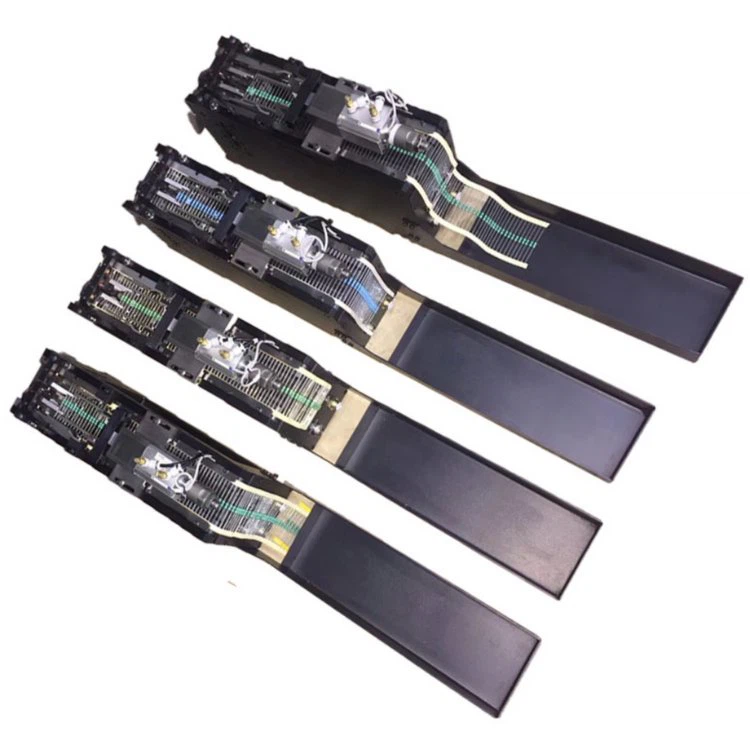

Axial Tape Feeder

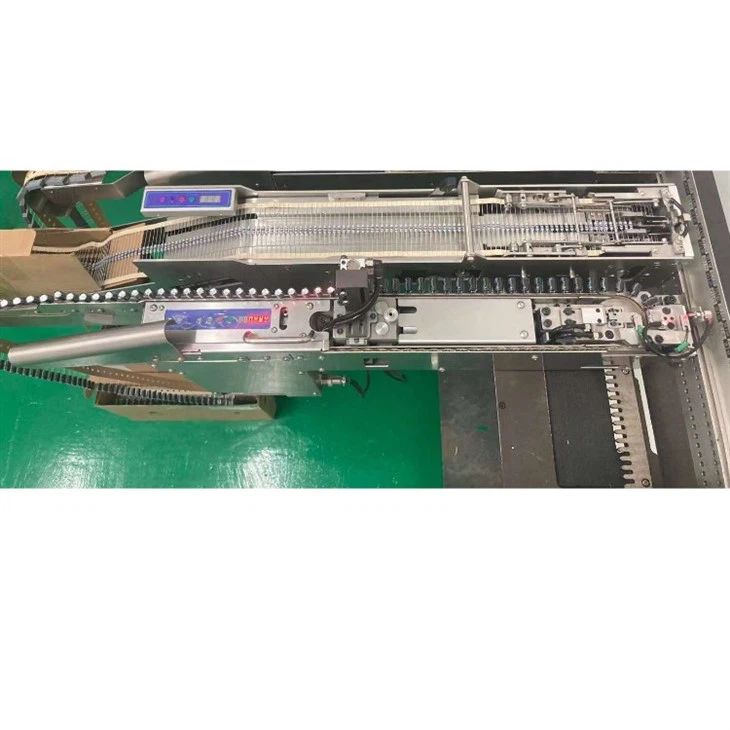

This axial tape component feeder is a special automatic axial lead cutting machine, axial component feeder designed to cut and bend axial taped components to customer's specifications, and then holds these components so that the robot can pick them up online or link to the SMT insertion machine for robotic feeding operation.
Send an inquiry

SMT Axial Tape Components Feeder

Description

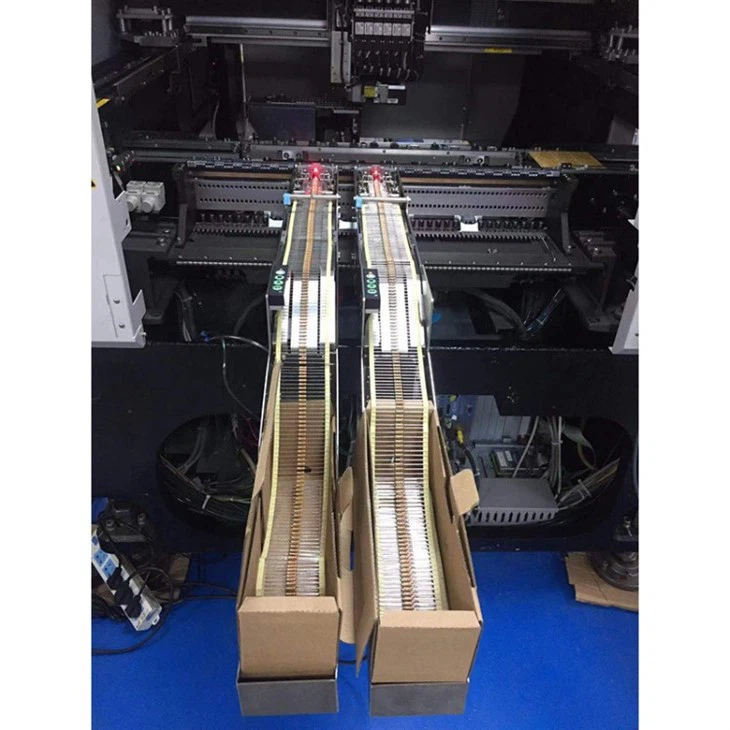

Compatible with SMT machines such as Panasonic, Juki, Fuji, ASM, Universal, Yamaha, etc., with height mechanical matching and communication to the machine. Suitable for axial tape resistor, transistor, jumper wire, etc.

We provide a full SMT automated assembly equipment, solutions. As part of that turnkey solution, we can offer packages of equipment for automation SMT assembly production line. It includes the including Robotic component feeder, odd form parts feeder, insertion machine tape feeder, axial tape feeder, axial forming tape feeder, axial lead tape feeder, Radial tape feeder, robotic radial tape feeder, Tube feeder, SMT tray feeder and so on.

Features
  • PLC integrated control system.
  • Automated feeding of axial components.
  • Integrated lead cutting and bending component feeder unit.
  • Exact alignment of parts.
  • Easy user interface, easy adjustment.
  • Quick interchangeability of feeder
  • Cycle time≤ 0.8 sec
  • Automatically feeding tape, cutting tape, and bending the lead of radial components.
  • Adopts steel and aluminum alloy as feeder body, durable and stable.
  • Up to 5000 components can be fed per hour.
  • Wide component range.
  • Support IO communication or independent control.
Specifications

Component type: Tape resistance, tape triode, tape jumper
Component size:3x3mm- 6x20mm
Tape width: 35mm, 64mm, 92mm (or customized)
Tape thickness: >0.2mm
Feeding type: air-operated
Power supply: 24V
Air supply: 0.4-0.6MPA
Interface: SMEMA
Feeding speed: Approx.1 second
Feeder precision:+0.3mm
Cutter life: 5 million times
Life time: Around 5 years

Customized steps, please tell US following question:
  1. Provide the physical picture for the material and the material size and then to quote.
  2. lf your component feeding requires the specified direction. Please describe.
  3. When confirm item, please send us the taped component sample to do precision measurement, we need do test for the

cutting radial feeder before our delivery.
