We provide a full SMT automated assembly equipment, solutions. As part of that turnkey solution, we can offer packages of equipment for automation SMT assembly production line. It includes the including Robotic component feeder, odd form parts feeder, insertion machine tape feeder, axial tape feeder, axial forming tape feeder, axial lead tape feeder, Radial tape feeder, robotic radial tape feeder, Tube feeder, SMT tray feeder and so on.

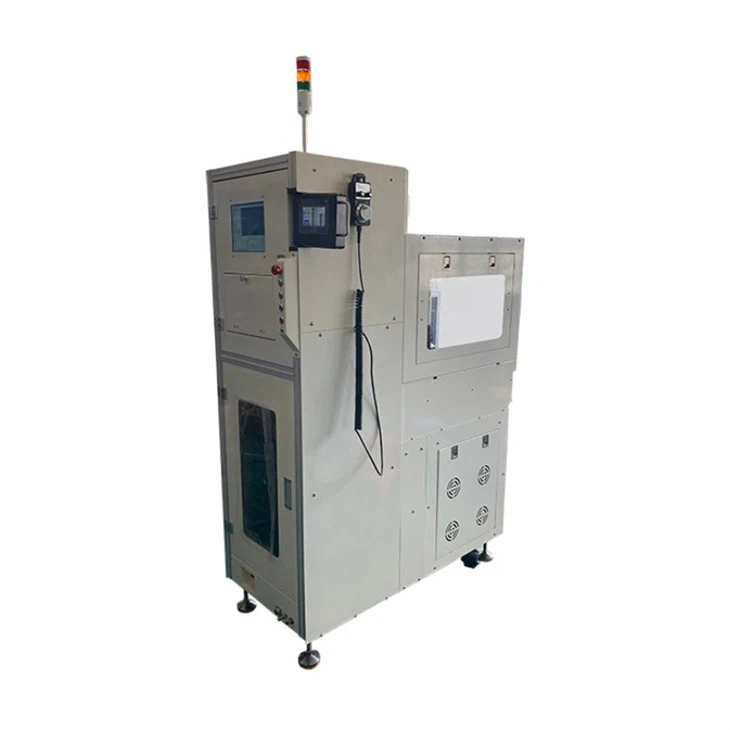

Model | HW-TP-01 |
Overall Size(L*W*H) | 1160*790*1530 |
Net weight | 75-80KG |
Component type | Transformer, relay, hardware, memory stick socket, large capacitance, etc. |
Component size | 3x3x3-50x50x50mm |
Tray size | 150×150-200x300mm |
Tray material | PET plastic film |
Max load of Tray | <3kg |
Capacity of tray | 40pcs (height<10mm) |
Power | 220V, 5/ 8A |
Air supply | 0.4-0.6 MPA |
Communication mode | Supports IO communication |
Tray lifting mode | Motor drive + high precision ball screw transfer |
Drive mode | High precision lifting system with servo motor |
Cycle time | 3 sec one component |
Feeding accuracy | ±0.1mm |
