We provide automatic two-component and three-component sealing dispensing machines that can prove leakage and reduce vibration and noise, perfectly solving problems that manufacturers are concerned about.
Automatic foam sealing machines are widely using in automation, automobiles, electrical cabinets, air filters, air conditioning purification equipment, air compressors, packaging, electronic components, lamps, new energy, and other fields.

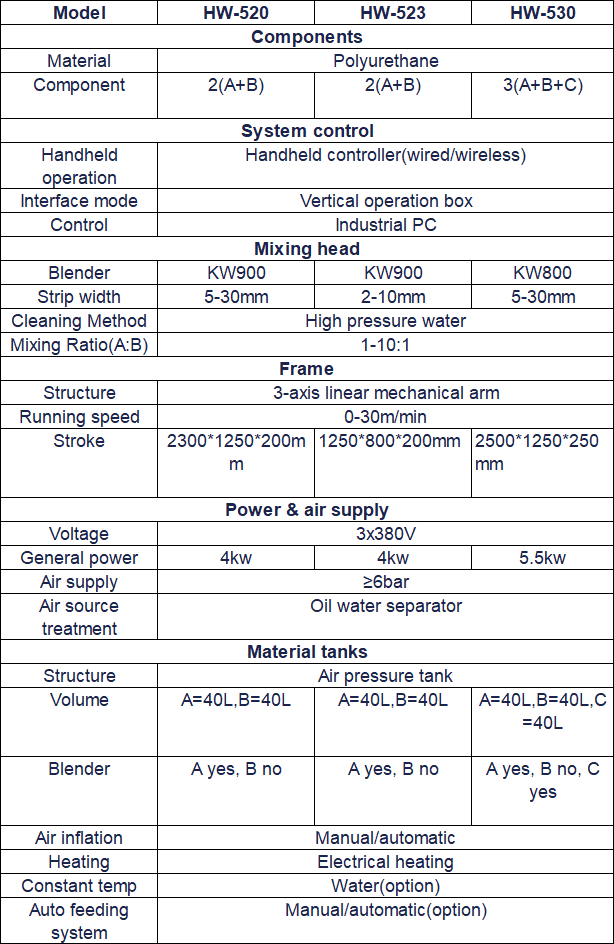

Model | HW-520 | HW-523 | HW-530 |
Components | |||
Material | Polyurethane | ||
Component | 2(A+B) | 2(A+B) | 3(A+B+C) |
System control | |||
Handheld operation | Handheld controller(wired/wireless) | ||
Interface mode | Vertical operation box | ||
Control | Industrial PC | ||
Mixing head | |||
Blender | KW900 | KW900 | KW800 |
Strip width | 5-30mm | 2-10mm | 5-30mm |
Cleaning Method | High pressure water | ||
Mixing Ratio(A:B) | 1-10:1 | ||
Frame | |||
Structure | 3-axis linear mechanical arm | ||
Running speed | 0-30m/min | ||
Stroke | 2300*1250*200mm | 1250*800*200mm | 2500*1250*250mm |
Power & air supply | |||
Voltage | 3x380V | ||
General power | 4kw | 4kw | 5.5kw |
Air supply | ≥6bar | ||
Air source treatment | Oil water separator | ||
Material tanks | |||
Structure | Air pressure tank | ||
Volume | A=40L,B=40L | A=40L,B=40L | A=40L,B=40L,C=40L |
Blender | A yes, B no | A yes, B no | A yes, B no, C yes |
Air inflation | Manual/automatic | ||
Heating | Electrical heating | ||
Constant temp | Water(option) | ||
Auto feeding system | Manual/automatic(option) | ||
