Dual-arm combined placement enables the fastest placement speed of 84,000 CPH (under our optimal conditions).
The dual-arm dual-drive system effectively ensures precision and consistency during high-speed operation.
Six heads can pick simultaneously, maintaining the same distance as the feeders. It supports simultaneous material pick-up from 8mm feeders on both the front and back fixed plates. The nozzle stroke is 31mm, and it can place components with a height of up to 14mm.
Dual-arm combined placement enables the fastest placement speed of 84,000 CPH (under our optimal conditions).
The dual-arm dual-drive system effectively ensures precision and consistency during high-speed operation.
High-Efficiency Integrated Placement Head Configuration (Quick and Easy Setup)
Peak Performance: 42,000 CPH (Under Optimal Conditions)
Component Compatibility: Supports tiny 0201 chips to large components up to 40mm × 40mm

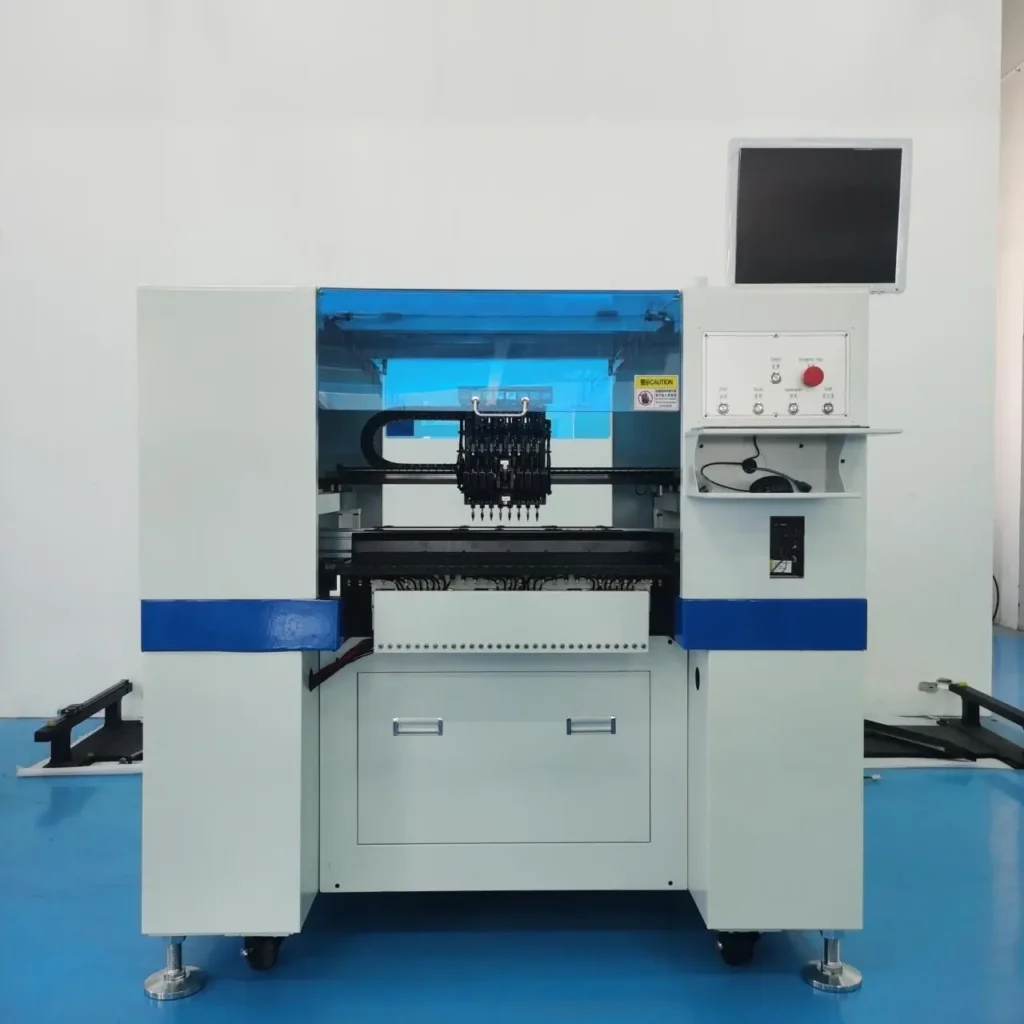

Discover the high-performance HW-A8 SMT placement machine featuring 8 industrial vision cameras, Panasonic servo drives, and granite stability platform. Achieve ±0.05mm accuracy with 40K CPH speed for LED strips, bulbs, drivers & more. Professional-grade SMT solution with 360° placement capability.
As a leading SMT pick-and-place machine manufacturer, our equipment integrates cutting-edge technology with engineering expertise to deliver three core values for electronics manufacturers:
Ultra-High-Speed Precision Operation
Equipped with a dual-cantilever linkage system and linear magnetic levitation drive technology, placement speed exceeds 90,000 CPH (components per hour) with positioning accuracy of ±15μm. The patented vacuum nozzle matrix automatically recognizes components ranging from 0201 to 55mm x 55mm irregular shapes, supporting special packages like QFN/BGA/LED.
Intelligent Production Hub
Full-Scenario Adaptability
SMT Machine One-stop Solution
