HW-A8 fully automatic pick-and-place machine

HW-A8 Automatic Pick-and-place Machine for LED

Discover the high-performance HW-A8 SMT placement machine featuring 8 industrial vision cameras, Panasonic servo drives, and granite stability platform. Achieve ±0.05mm accuracy with 40K CPH speed for LED strips, bulbs, drivers & more. Professional-grade SMT solution with 360° placement capability.
Send an inquiry

Fully automatic Pick and Place Machine HW-A8

Description

HW-A8 Fully automatic pick-and-place machine Advantages

  • Equipped with 8 industrial-grade high-speed linear vision cameras for simultaneous 8-head recognition, significantly improving placement efficiency

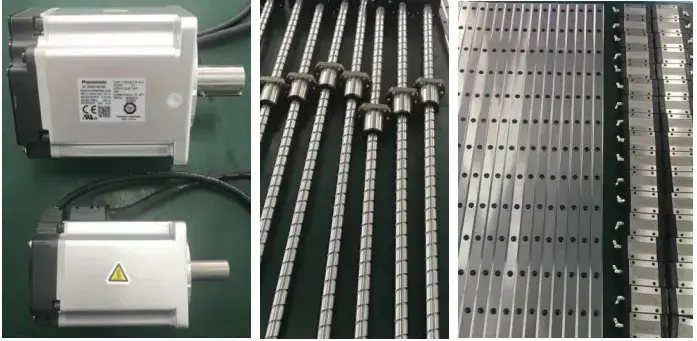

  • Powered by Panasonic servo motor drive systems (Japan imported) with TBI heavy-duty precision linear guides and ground ball screws to ensure both accuracy and speed

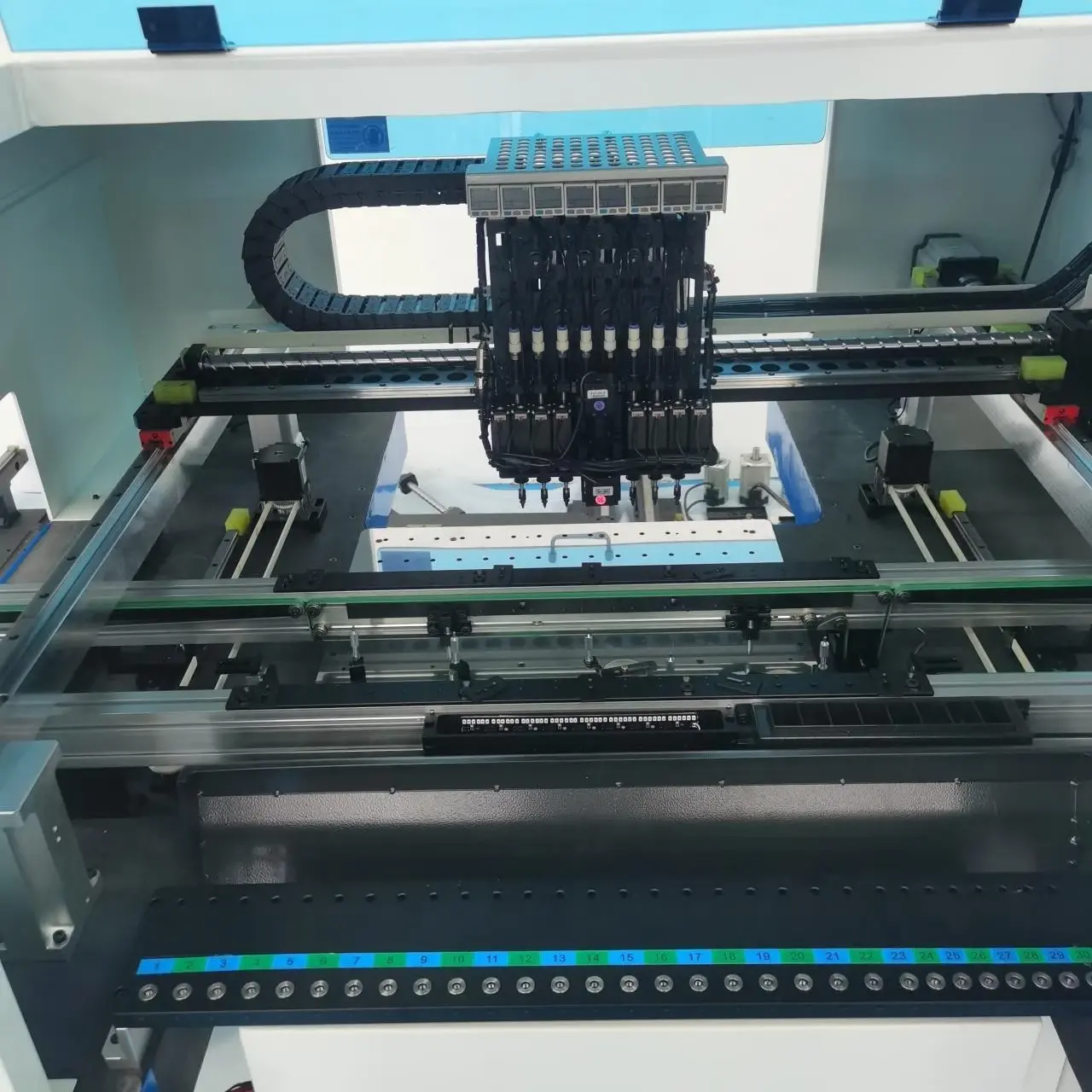

Fully automatic pick-and-place machine HW-A8
Fully automatic pick-and-place machine HW-A8
  • New granite base platform with additional 200kg weight significantly improves machine stability for long-term durability
  • Optimized design extends service life of ball screws and linear guides
Fully automatic pick-and-place machine HW-A8
Features

HW-A8 Fully automatic pick-and-place machine Features

  • Fiducial mark alignment with substrate origin positioning (accuracy <0.05mm)
  • 0-360° placement rotation with 0.1° precision
  • Independent nozzle rotation + 8 component recognition cameras
  • Wide application coverage:
    • Traditional LED strips
    • Bulbs/spotlights/downlights
    • Ceiling lights/guardrail tubes
    • LED drivers/control boards
    • Copper wire string lights
Technical Parameters
Machine SpecificationsSystem Specifications
Model: HW-A8Tape Feeder: Supports 8/12/16/24mm tape
Max PCB Size: 600×400mm (Extendable to 1200mm)Feeder Capacity: 30×8mm standard feeders
Travel Range: X-axis 600mm / Y-axis 400mmOS: Windows 7
No. of Heads: 8-head configurationAir Pressure: 0.55MPa
Z-axis Stroke: 12mmPower Supply: 220V/50Hz/2.0kW
Max Speed: 40,000 CPHWeight: 1200kg
Typical Speed: 15,000-30,000 CPHDimensions: 1350(L)×1300(W)×1450(H)mm
Placement Accuracy: ±0.05mmProgramming: Vision-guided auto programming
Conveyor System: Auto conveyor + 3-stage bufferVision System: Fiducial camera + 8 flying cameras (Optional high-precision)
Min Component: 0402 package (within 11mm)Placeable Components: 0402 R/C, 3528/5050 LEDs, SOP/SOT ICs, Power drivers
Applications: LED tubes/strips/modules/displaysHigh-power Components: Supports large power devices

Key Features:

  • 🚀 High Efficiency: 8-head architecture achieves 40K CPH theoretical peak
  • 🎯 Precision Control: ±50μm accuracy + optional high-precision vision
  • 🔌 Power Compatibility: 220V standard voltage reduces retrofitting costs
  • 📦 Expandability: PCB length extendable to 1.2m (Specialized for LED strips)
