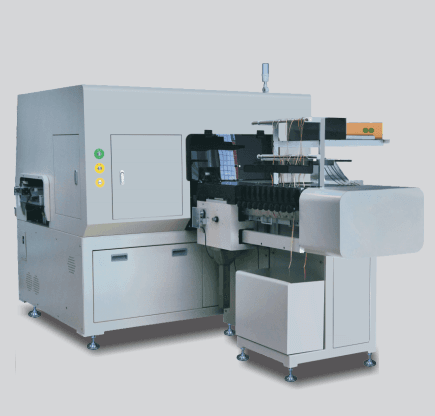

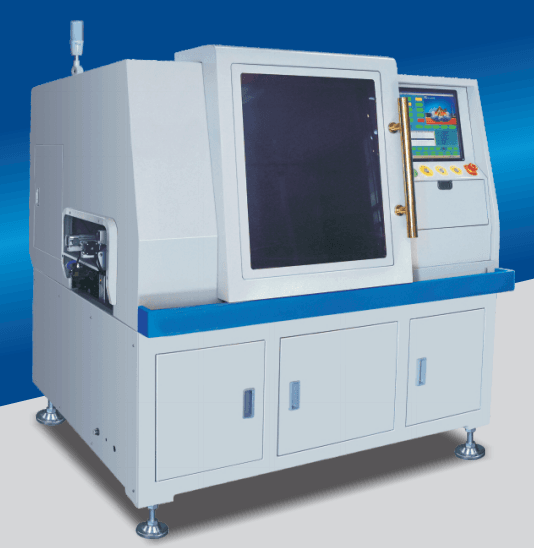

The operating software running in the Windows environment including production data,management data,device parameters,editing programs,and all /O signal diagnosis,can be completed on the host, with a user-friendly interface.The application of high-tech technology makes the device simple and efficient,easy to use,and has good operability.
The industrial special HD camera and the self-developed visual correction software constitute a visual system.The deviation between the PCB hole position and the programmed coordinates can be seen, and allcoordinates can be quickly and automatically corrected to align wth the actual PCB hole position,ensuring the accuracy of the insertion and greatly improving the programming efficiency.
When inserting missing parts, it can achieve missing part detectionand has are-insertion function.
| Item | Description |
|---|---|
| Theoretical speed | 24000 /(piece) |
| Poor insertion | <1000 PPM |
| Insertion direction | 0–360 degrees in 1 degree increments |
| Lead span | 5.0–20mm, jumper wire 5.0–25mm |
| Substrate size | Max 100mm × 100mm; Max 330mm × 330mm (customizable) |
| Substrate thickness | 0.79–2.36mm |

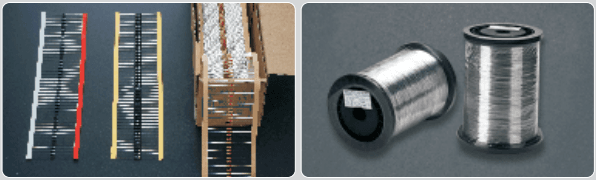

| Component specifications | The maximum length is 16mm, max diameter is 5mm |
| Component type | Resistors, diodes, transistors, etc. |
| Component lead clip length | 1.2–2.2mm (adjustable) |
| Component lead bending length | 0–35 degrees (adjustable) |
| Number of material stations | 10–20 stations (optional 10–80 stations) |
| Machine size (L × W × H) | 1700mm × 2300mm × 1410mm (10 stations) |
| Material station size | 500mm × 1000mm × 1410mm (10 stations) |
| Machine weight | 1700 KG |
| Using the power supply | 220V AC, 50/60HZ, 2KVA |
| Usage power | 1.6kW (energy-saving type) |
| Using air pressure | 0.6–0.8 MPa |
| Usage volume | 0.2m³/min |
| Operating ambient temperature | -5 degrees to 25 degrees |
| Machine noise | 65 dB |
| Hole position correction method | Machine vision system |
| Driving system | AC motor, AC servo |
| Data input method | Excel document input |
| Programming system | Windows system control platform LCD display |
| Component density | High density insertion method |
| Workbench operation mode | XY axis direction |
| Circuit board conveying method | Fully automatic (left to right or right to left) |
