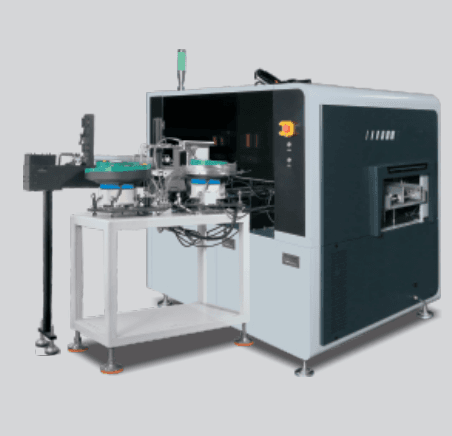

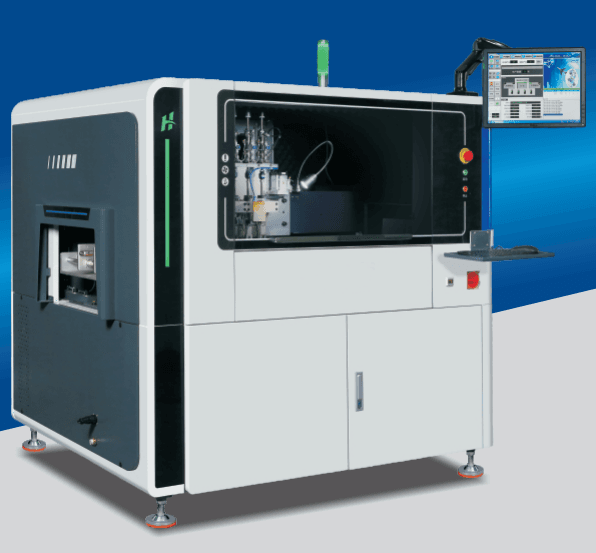

The operating software running in the Windows environment including production data,management data,device parameters,editing programs,and all /O signal diagnosis,can be completed on the host, with a user-friendly interface.The application of high-tech technology makes the device simple and efficient,easy to use,and has good operability.
The industrial special HD camera and the self-developed visual correction software constitute a visual system.The deviation between the PCB hole position and the programmed coordinates can be seen, and allcoordinates can be quickly and automatically corrected to align wth the actual PCB hole position,ensuring the accuracy of the insertion and greatly improving the programming efficiency.
When inserting missing parts, it can achieve missing part detectionand has are-insertion function.
| Item | Description |
|---|---|
| Theoretical speed | 24000 points/hour (theoretical speed) |
| Poor insertion | <1000 PPM |
| Insertion direction | 0–360 degrees, in 1 degree increments |
| Pin span | 2.5/5.0mm (2.5/5.0mm) or (2.5/5.0mm) / 2.5/5.0mm or (2.5/5.0/7.5/1.0mm) |
| Substrate size | Max 400mm × 350mm; Min 50mm × 50mm |
| Substrate thickness | 0.79–2.36mm |
| Inlet height | Maximum height is 23mm, maximum diameter is 13mm |

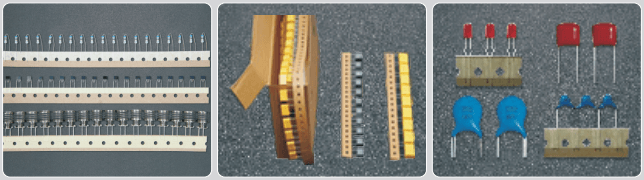

| Component type | Standard vertical ribbon packaged electronic components |
| Cutting foot length | 15–35 degrees |
| Using the power supply | 220V AC, 50/60HZ, 2KVA |
| Usage power | 1.5kW (energy-saving type) |
| Using air pressure | 0.6 MPa |
| Usage volume | 0.3m³/min |
| Operating ambient temperature | -5° to 25° degrees |
| Machine noise | 70 dB |
| Hole position correction method | Machine Vision System |
| Driving system | AC, AC servo, AC motor |
| Software format | EXCEL document, USB interface input |
| Programming mode | Manual mode, offline programming |
| Control system | Windows system control platform LCD display |
| Transmission mode | Automatic |
| Direction of plate entry | Left to right or right to left (optional) |
| Component density | High density insertion method |
| Automatic replenishment | Independently developed automatic replenishment function |
| Material supply configuration | 10/15 stations (optional 20/30 stations) |
| Equipment dimensions | Approximately 1500kg |
| Operation interface | Operation options are clear and easy to understand |
