The operating software running in the Windows environment including production data,management data,device parameters,editing programs,and all /O signal diagnosis,can be completed on the host, with a user-friendly interface.The application of high-tech technology makes the device simple and efficient,easy to use,and has good operability.
The industrial special HD camera and the self-developed visual correction software constitute a visual system.The deviation between the PCB hole position and the programmed coordinates can be seen, and allcoordinates can be quickly and automatically corrected to align wth the actual PCB hole position,ensuring the accuracy of the insertion and greatly improving the programming efficiency.
When inserting missing parts, it can achieve missing part detectionand has are-insertion function.

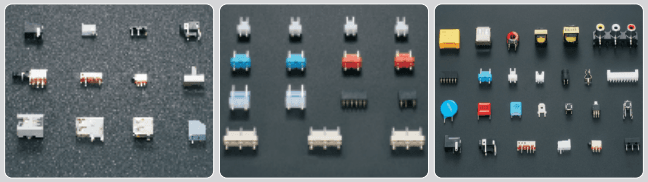

| Item | Description |
|---|---|
| Insertion speed | 0.5 seconds per piece |
| PCB loading and unloading time | 3s |
| Component packaging method | Bulk, tube, tape, roll, reel |
| Dimensions of detachable PCB | Max 380mm × 280mm; Min 50mm × 50mm (customizable) |
| Number of insertion heads | Can set 1–4 insertion heads |
| PCB board requirements | The component aperture is 0.5mm |
| Insertion direction | Can be set from 0 to 360 degrees in increments of 1 degree |
| Component body distance | The distance between components is 2mm (high density customizable) |
| Component fixation method | Prepare different bottom molds for bending and fixing |
| Control system | Self-developed control system |
| Display system | 17 inch color LCD display |
| Material supply method | Bowl feeder, Tape feeder, Tube feeder, Tray feeder |
| Motion accuracy | 0.1 mm/pulse |
| Motor system | Panasonic servo controller, motor |
| Programming function | Online visual programming and simple Excel spreadsheet process |
| Data input | USB interface, manual input |
| Communication interface | RS-232 |
| Using the power supply | Industrial power supply |
| Air pressure | 5-6 kg/cm² |
| Machine noise | <55 dB |
| Ambient temperature | 30%~70% |
| Environmental humidity | 30%~70% |
| Gas consumption | 0.63 m³/min |
| Equipment dimensions (L*W*H) | 1750mm × 1350mm × 1750mm |
| Equipment weight | 1500kg |
