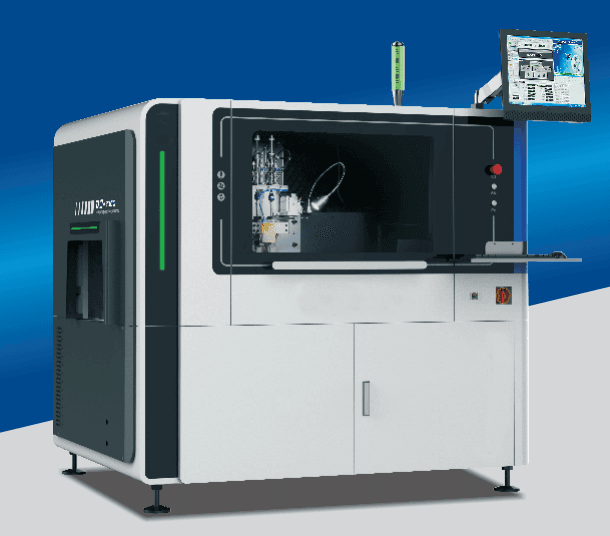

The operating software running in the Windows environment including production data,management data,device parameters,editing programs,and all /O signal diagnosis,can be completed on the host, with a user-friendly interface.The application of high-tech technology makes the device simple and efficient,easy to use,and has good operability.
The industrial special HD camera and the self-developed visual correction software constitute a visual system.The deviation between the PCB hole position and the programmed coordinates can be seen, and allcoordinates can be quickly and automatically corrected to align wth the actual PCB hole position,ensuring the accuracy of the insertion and greatly improving the programming efficiency.
When inserting missing parts, it can achieve missing part detectionand has are-insertion function.
| Item | Description |
|---|---|
| Insertion speed | 0.6 seconds per piece |
| PCB loading and unloading time | 3s |

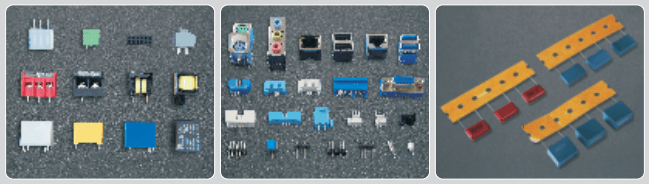

| Component packaging method | Bulk, tube, tape, roll, reel |
| Dimensions of detachable PCB | Max 380mm×280mm; Min 50mm×50mm (customizable) |
| Number of insertion heads | Can set up 1–6 insertion heads |
| Component requirements | No serious deformation or bending of component feet |
| PCB board requirements | The edge of the backup plate needs to have positioning holes |
| Insertion direction | Can be set from 0 to 360 degrees in increments of 1 degree |
| Component body distance | The distance between components is 2mm (high density can be customized) |
| Control system | Self developed control system, Industrial control card for efficient control |
| Display system | 17 inch color LCD display |

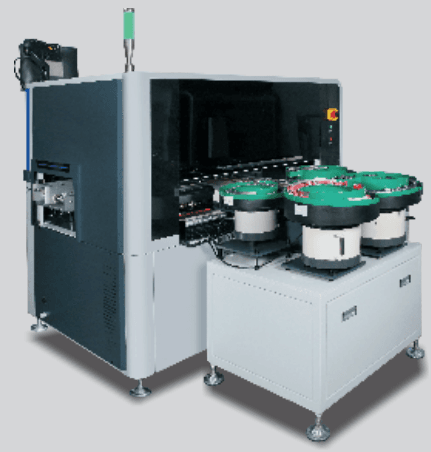

| Material supply method | Bowl feeder, Tape feeder, Tube feeder, Tray feeder |
| Motion accuracy | 0.001mm / 0.001mm per pulse |
| Motor system | Panasonic servo controller, motor |
| Programming function | Online visual programming, optical correction, and simple Excel spreadsheet process |
| Data input | USB interface input, manual input |
| Communication interface | RS-232C can connect MES / MES solution can be customized |
| Using the power supply | Single phase 220VAC, 50/60HZ, 2KVA |
| Air pressure | 5–6 kg/cm² |
| Machine noise | ≤45 dB |
| Ambient temperature | 10℃–30℃ |
| Environmental humidity | 30%–70% |
| Equipment dimensions | 1450mm * 1250mm * 1750mm |
| Equipment weight | 1500kg |
